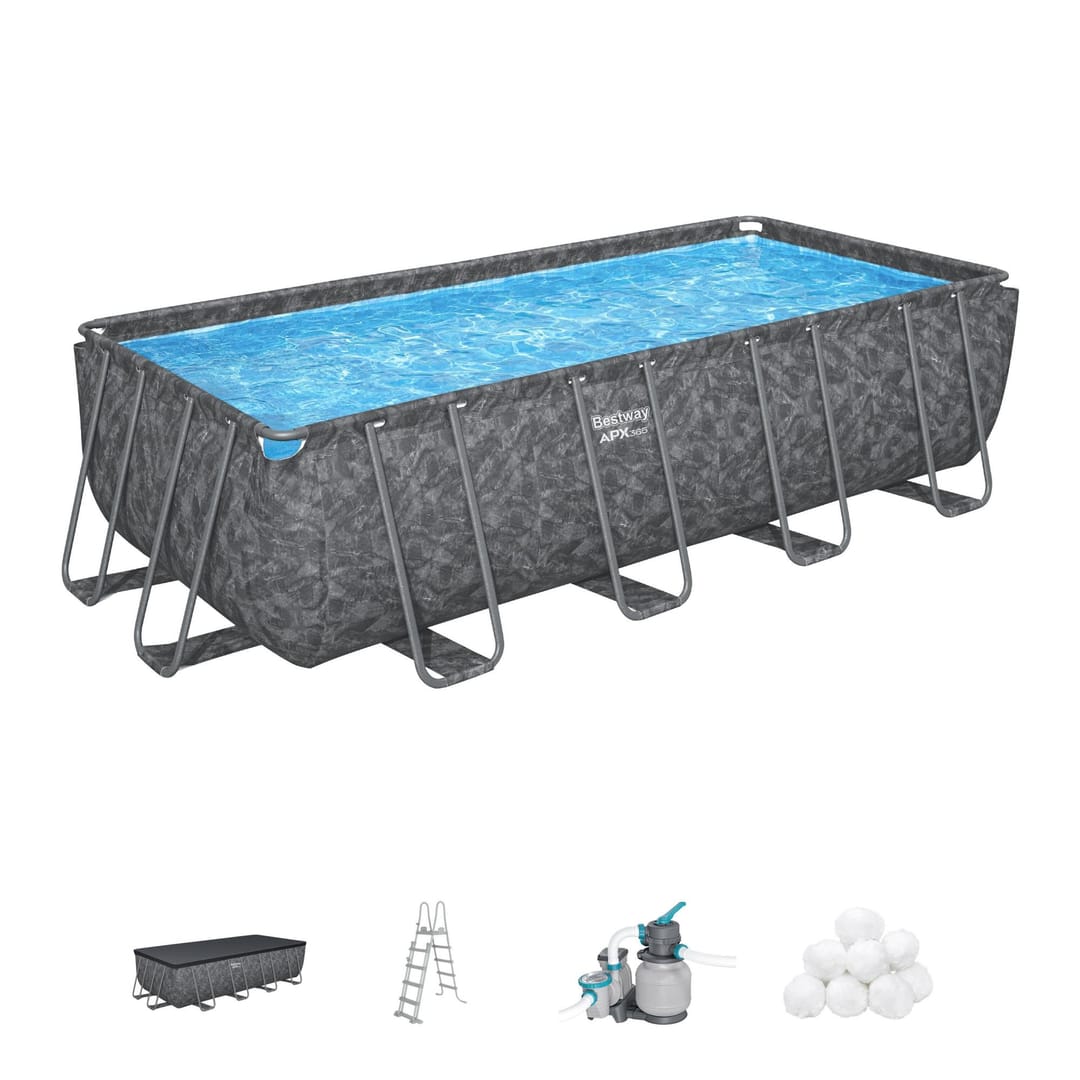

Set piscina APX 365 da 549x274x132 cm
Codice prodotto: 561KA
Manuali
Video Installazione
Ref
Foto
Nome
codice
Prezzo
Acquista
Sostituibile/Intercambiabile
0
18' x 9' x 52"/5.49m x 2.74m x 1.32m Pool Complete Frame
P09055
Non disponibile
P10136
349,00 €
Sostituibile
Modified drain valve
P10136 TO REPLACE P08938 > + drain connector set P09992
P08938 TO REPLACE P10136 > + drain connector set P6H1419ASS16
P6H1317ASS16
12,90 €
Sostituibile
The P6(H2)1317ASS18 is dark grey and the P6H1317ASS16 is grey
I
6056L/1600gal Sand Filter(EU)
P08507
Non disponibile
J
52"/1.32m Pool Ladder
P08949
Non disponibile
Ref
Foto
Nome
codice
Prezzo
Acquista
Sostituibile/Intercambiabile
5
Top O-ring for 2000gal Sand Filter
P61214ASS16
Non disponibile
P03838
14,90 €
Sostituibile
P07830: The length changed from 220cm to 193cm.
P07830 TO REPLACE P03838 > + P07007(Tank) + P07017(FilterSet) + P07012(TankBase)
P03838 TO REPLACE P07830 > + P03837(Tank) + 8 x P03841(FilterCanisters) + P03839(Tank Base)
8
Drain Canister for 2000gal Sand Filter
P61211ASS16
Non disponibile
10
Drain Valve Cap for Sand Filter except 530gal
P6580ASS16
Non disponibile
P61210ASS16
8,90 €
Sostituibile
FOR YZAKI--> P07017 TO REPLACE P61210ASS16: Also send P07616 tank + P07612 tank base+ P07831 Central Pipe/ P61210ASS16 TO REPLACE P07017: Also send P05245 tank + P05247 tank base+ P03834 Central Pipe.
P03839
14,90 €
Sostituibile
The tank base structure changed. P07012 TO REPLACE P03839 ->Also send P07830 (Central pipe hub) + P07017 (FilterSet) +P07007 (Tank) / P03839 TO REPLACE P07012 ->Also send P03838 (Central pipe hub) + P03841 (FilterCanisters)+P03837 (Tank).
17
Washer for Φ38mm Hose
P6029ASS16
Non disponibile
21
Drain Outlet Cover for Sand Filter
P08664
Non disponibile
24
Adaptor Nut for Sand Filter
P08665
Non disponibile
